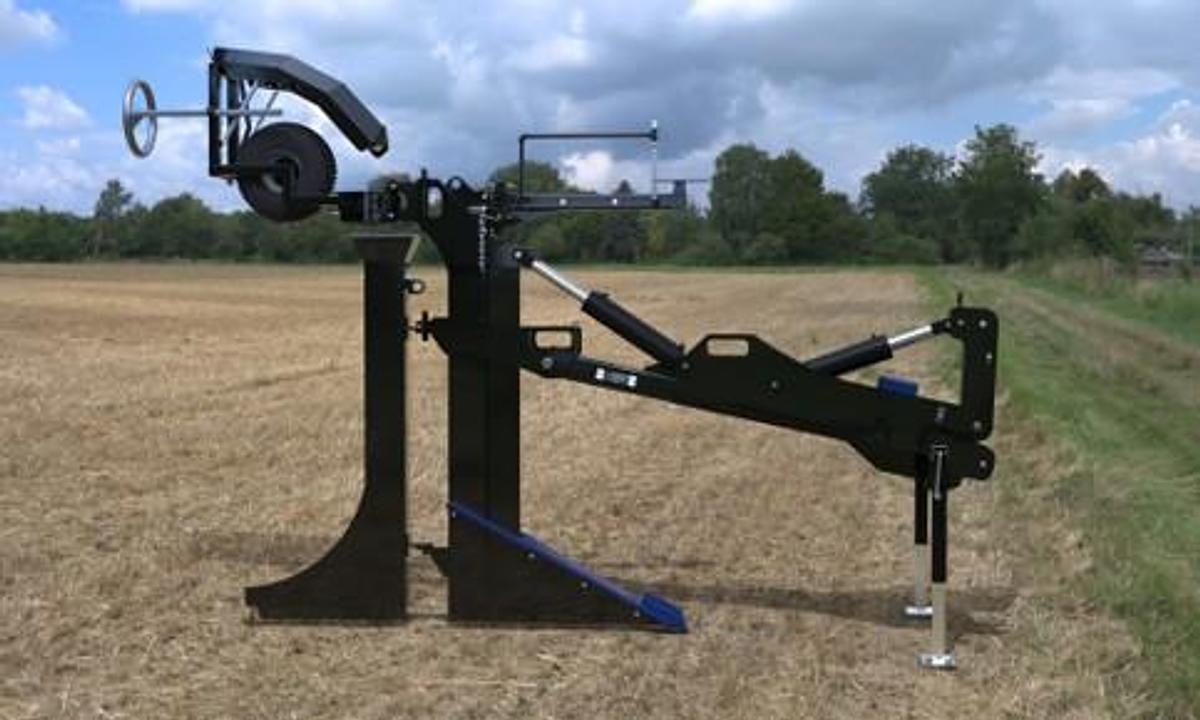

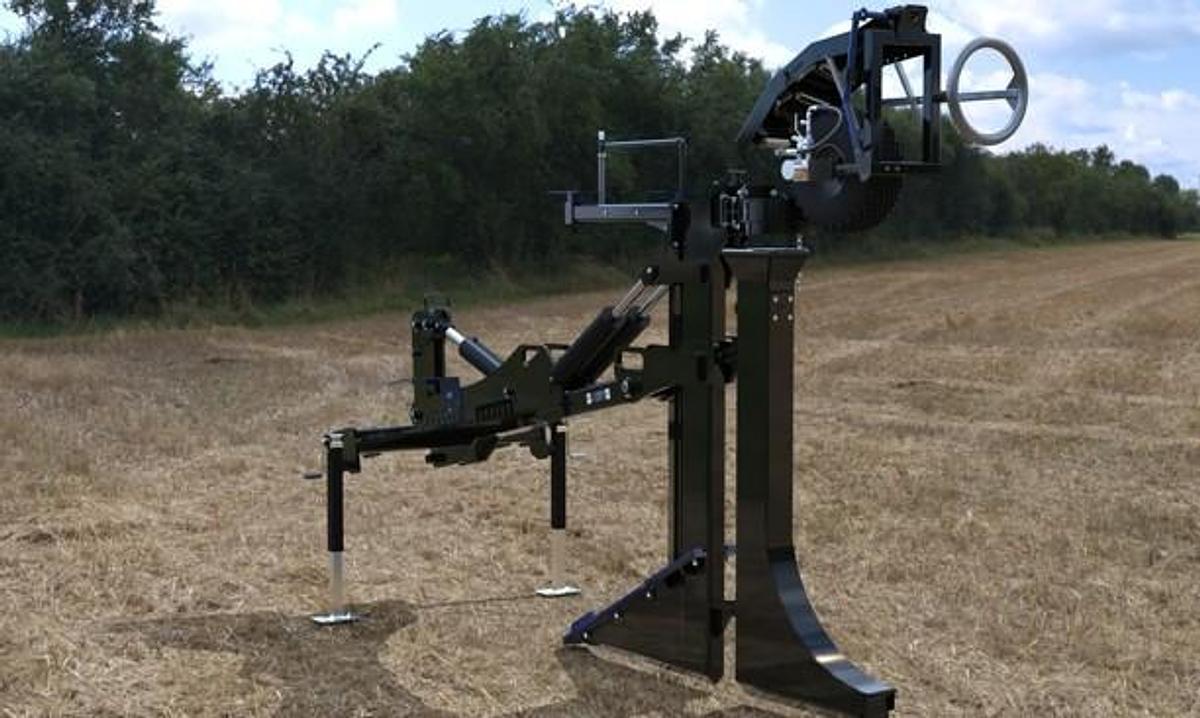

2026 LEGACY L48 3pt Tile Plow

The Legacy L48 3pt Tile Plow is the most versatile and affordable tile plow, perfect for those wanting to install tile economically. Designed for a Category III 3pt hitch, the L48

Tile Plow is perfect for shallower tile installation such as: laterals in a pattern tile application, along water ways, and draining wet spots in fields.

Pull with a large 2 wheel drive tractor.

The Legacy L48 can be pulled by a large two wheel drive or small to mid size front wheel assist tractor. It is recommended that a tractor with a weight of at least 16,000 pounds be used. In lighter soils, smaller tractors may be used.

Quick attach trailing boot.

The Legacy Quick Attach Trailing Boot is the easiest and quickest tile boot to change in the industry. Spend less time changing boots and more time tiling.

The L48 is sold with a 4" Quick Attach Trailing Boot standard. Optional Quick Attach Trailing Boots are available in 3",4", 5" and 6" sizes.

Pitch Control

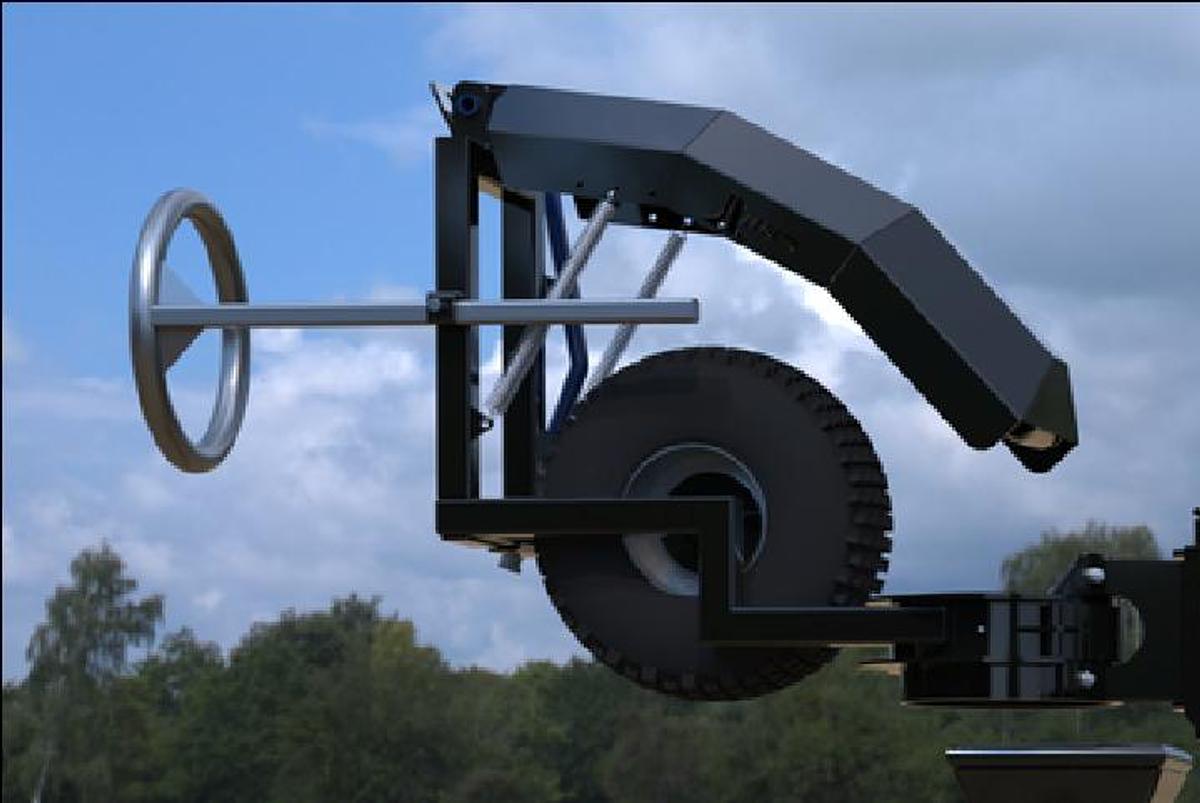

The L48 3pt Tile Plow installs tile using a pitch plow design.  Retract the cylinders to lower into the ground and extend the cylinders to raise out of the ground.   A depth indicator chain  and a water level are used to visualize the tile depth and pitch during installation.

Optional Grade Control

Laser or GPS Grade Control is available for the L48 Tile Plow. Check out our Technology page and our website for more information.
