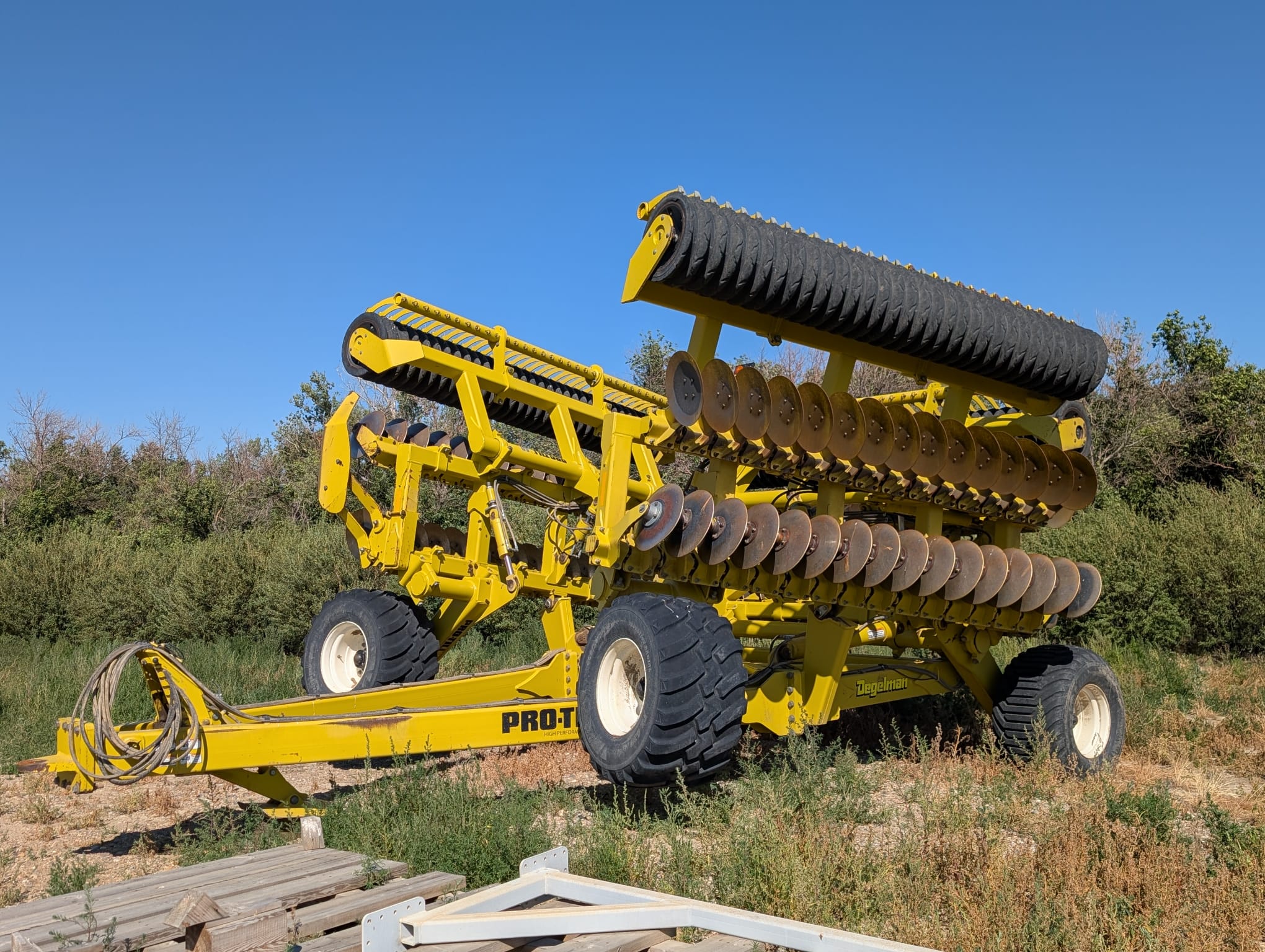

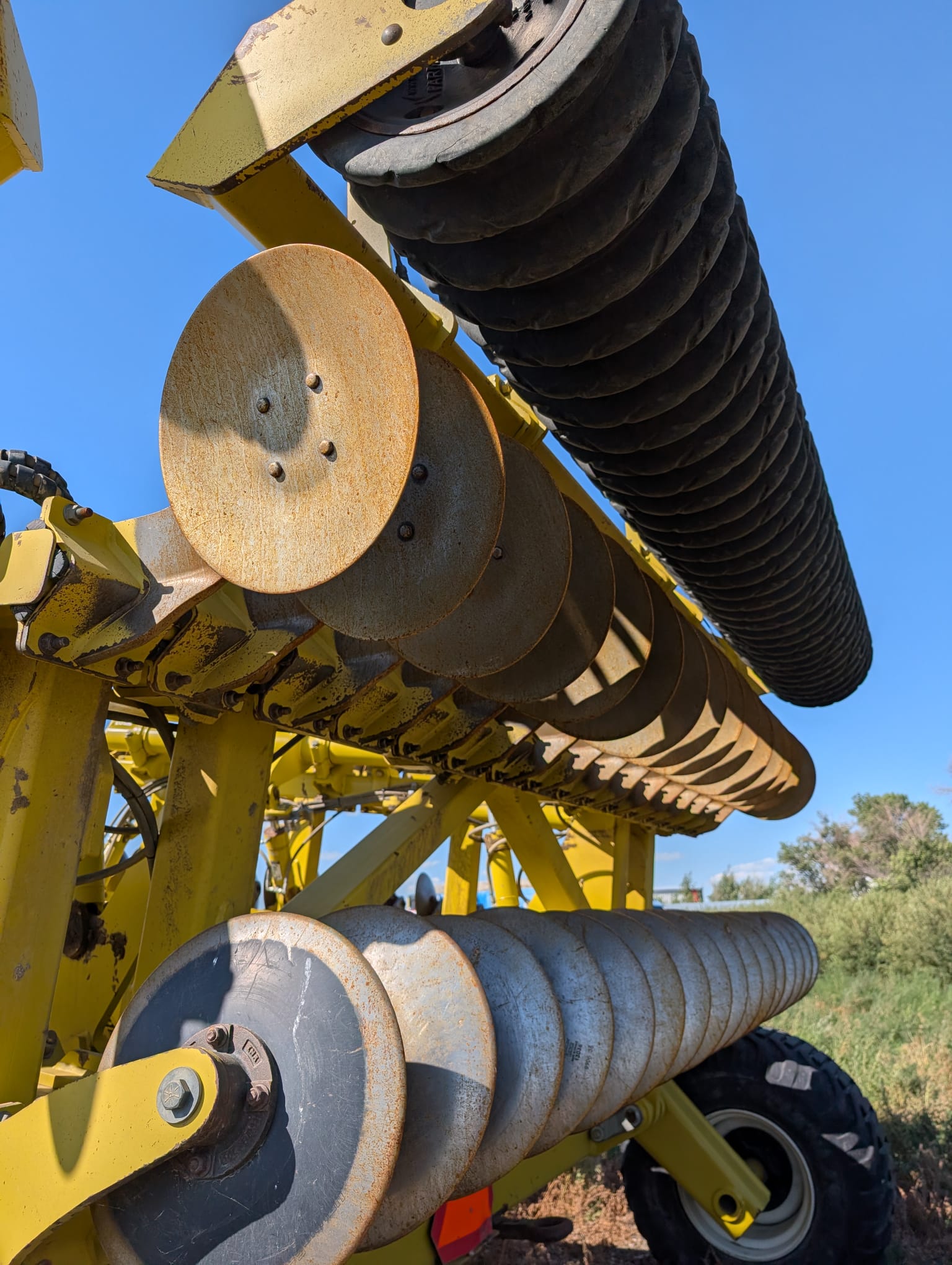

2023 Degelman Pro-Till 40

Safely Transport To & From The Field

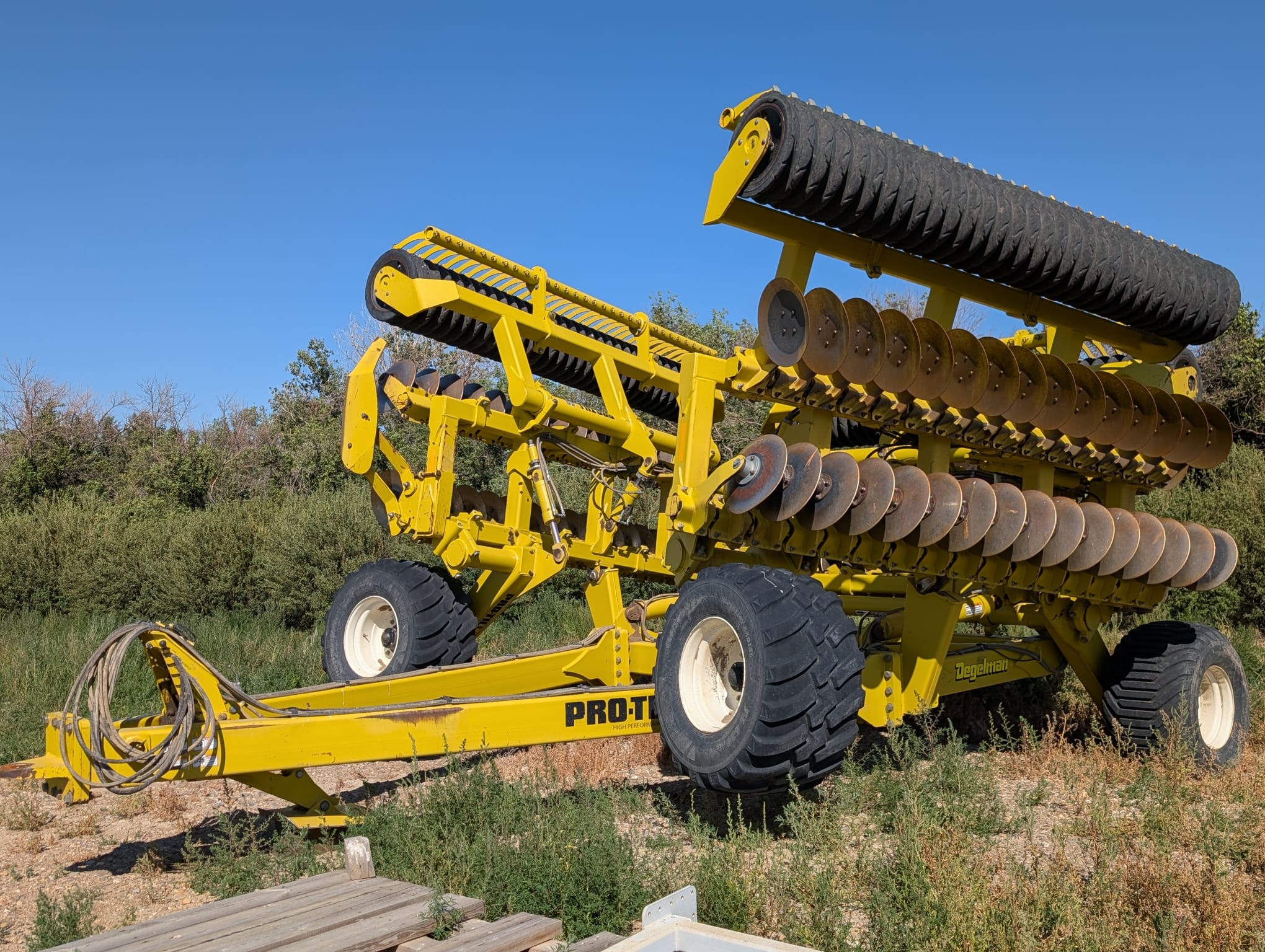

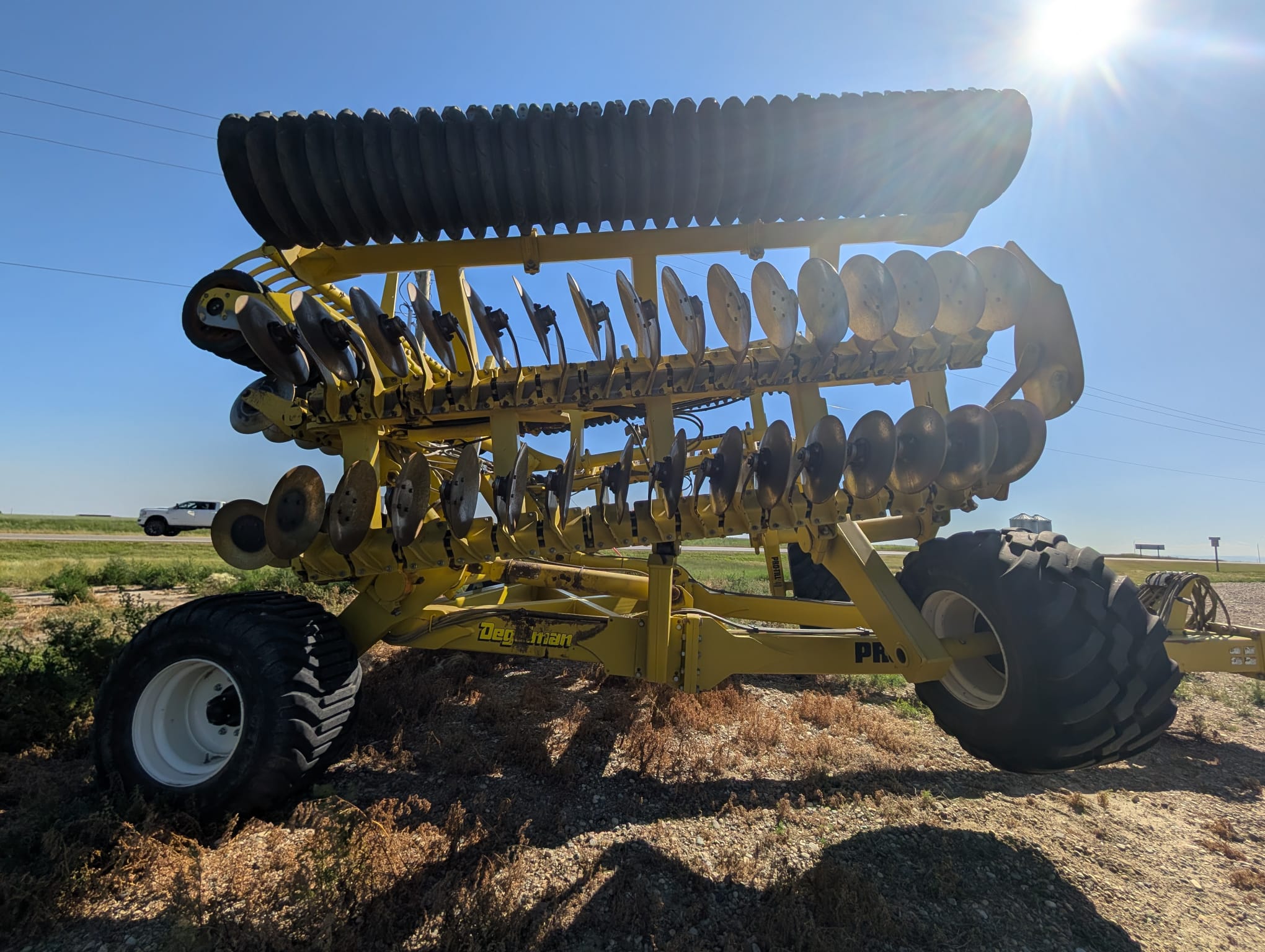

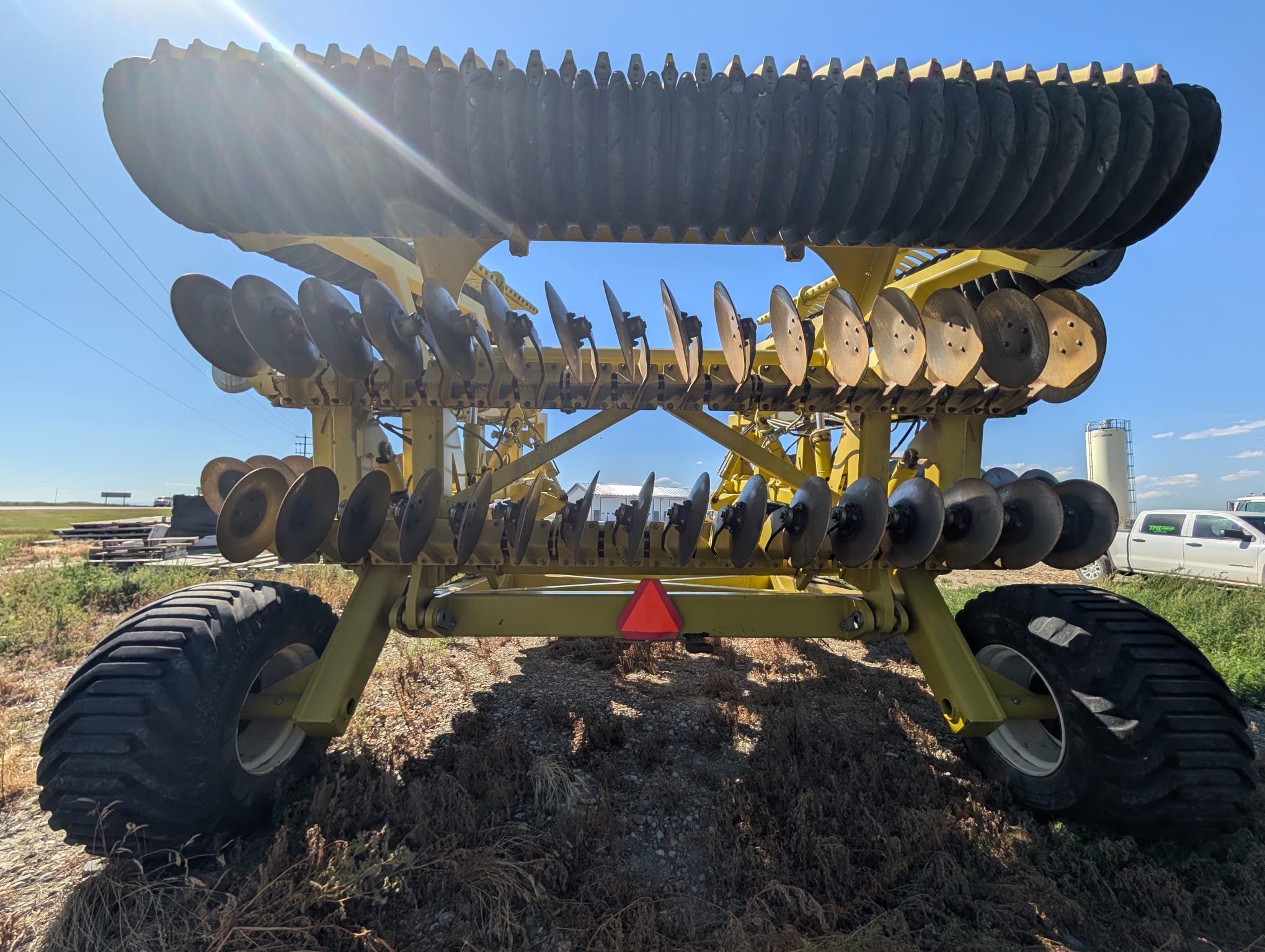

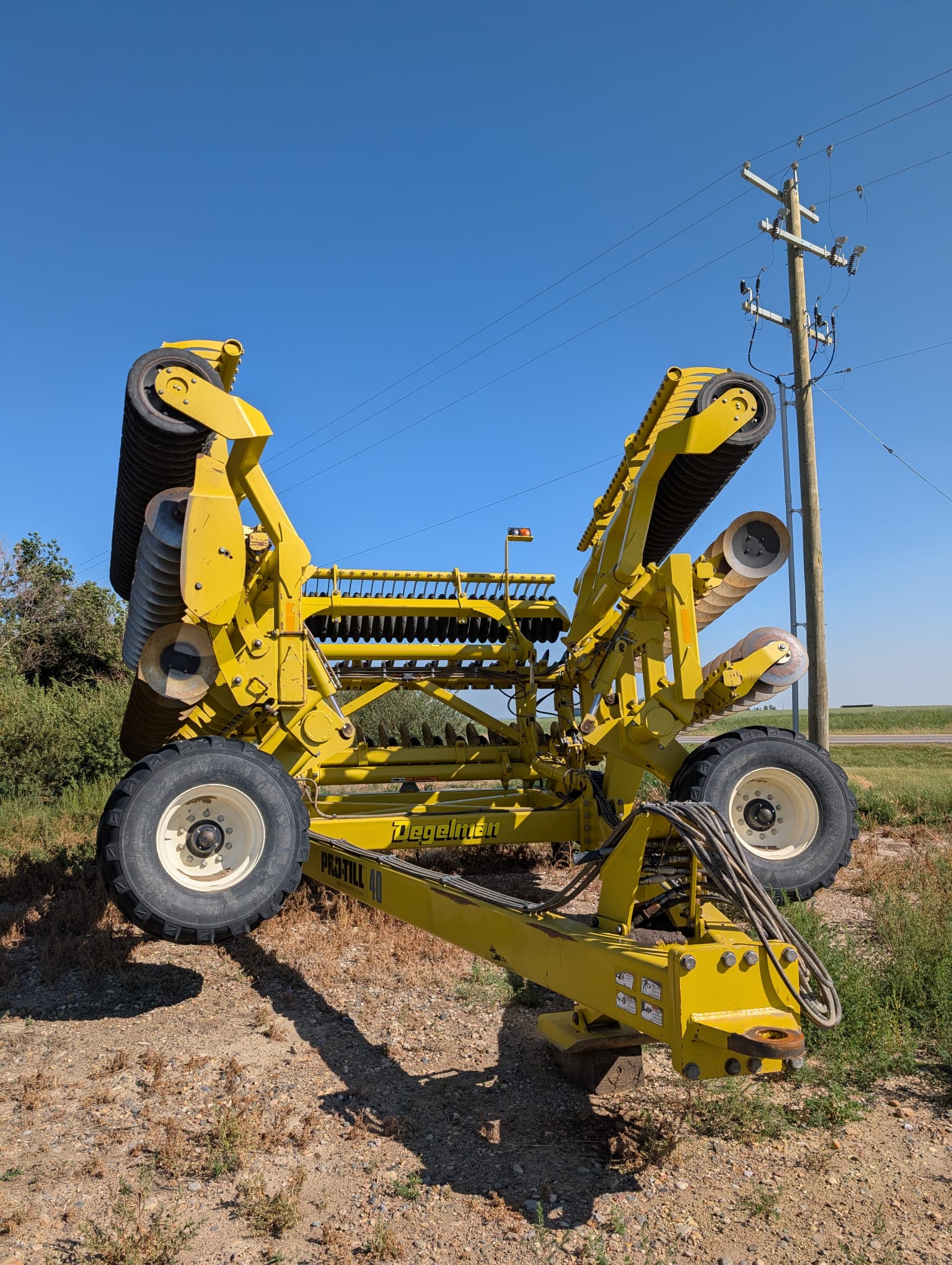

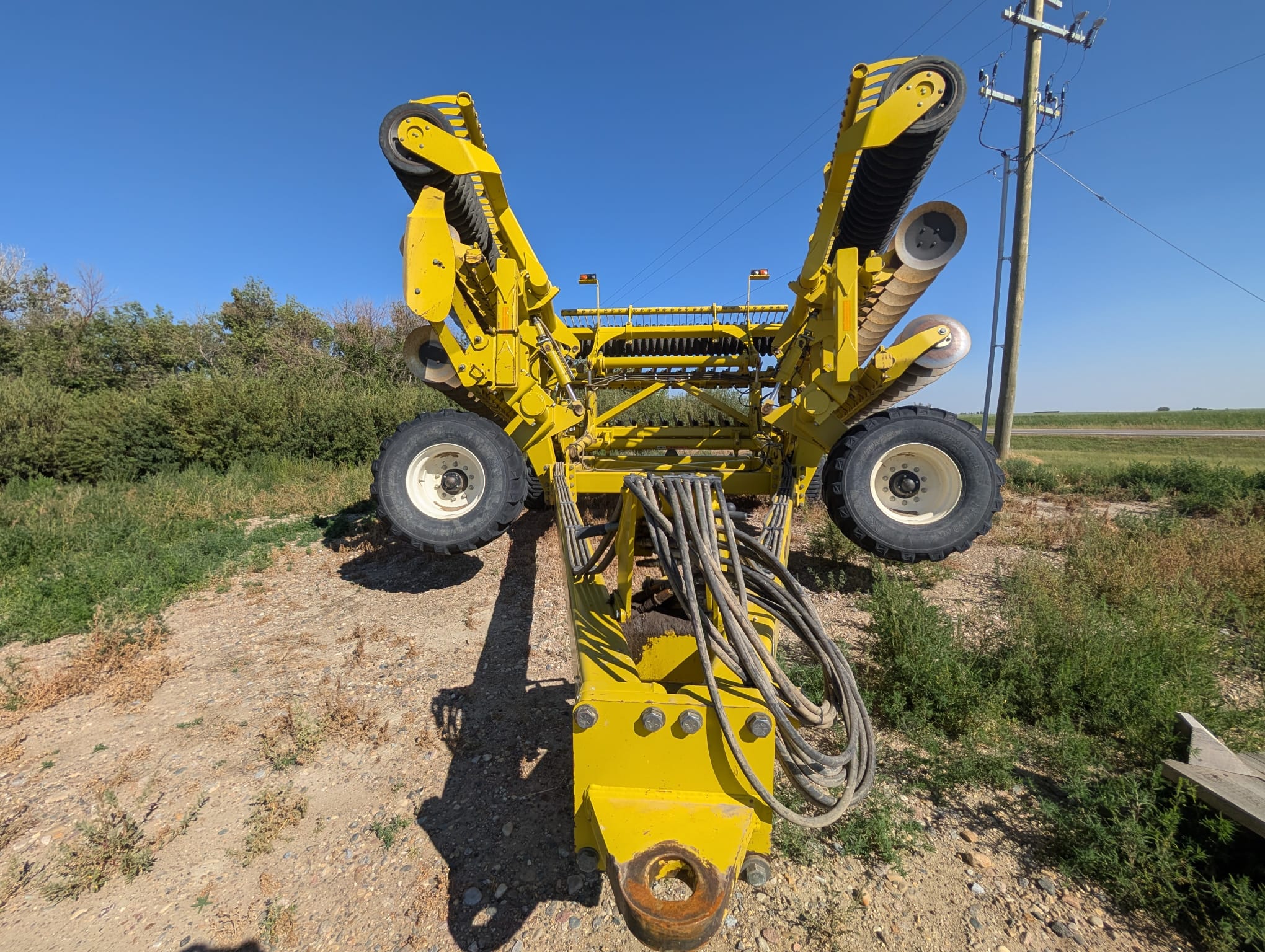

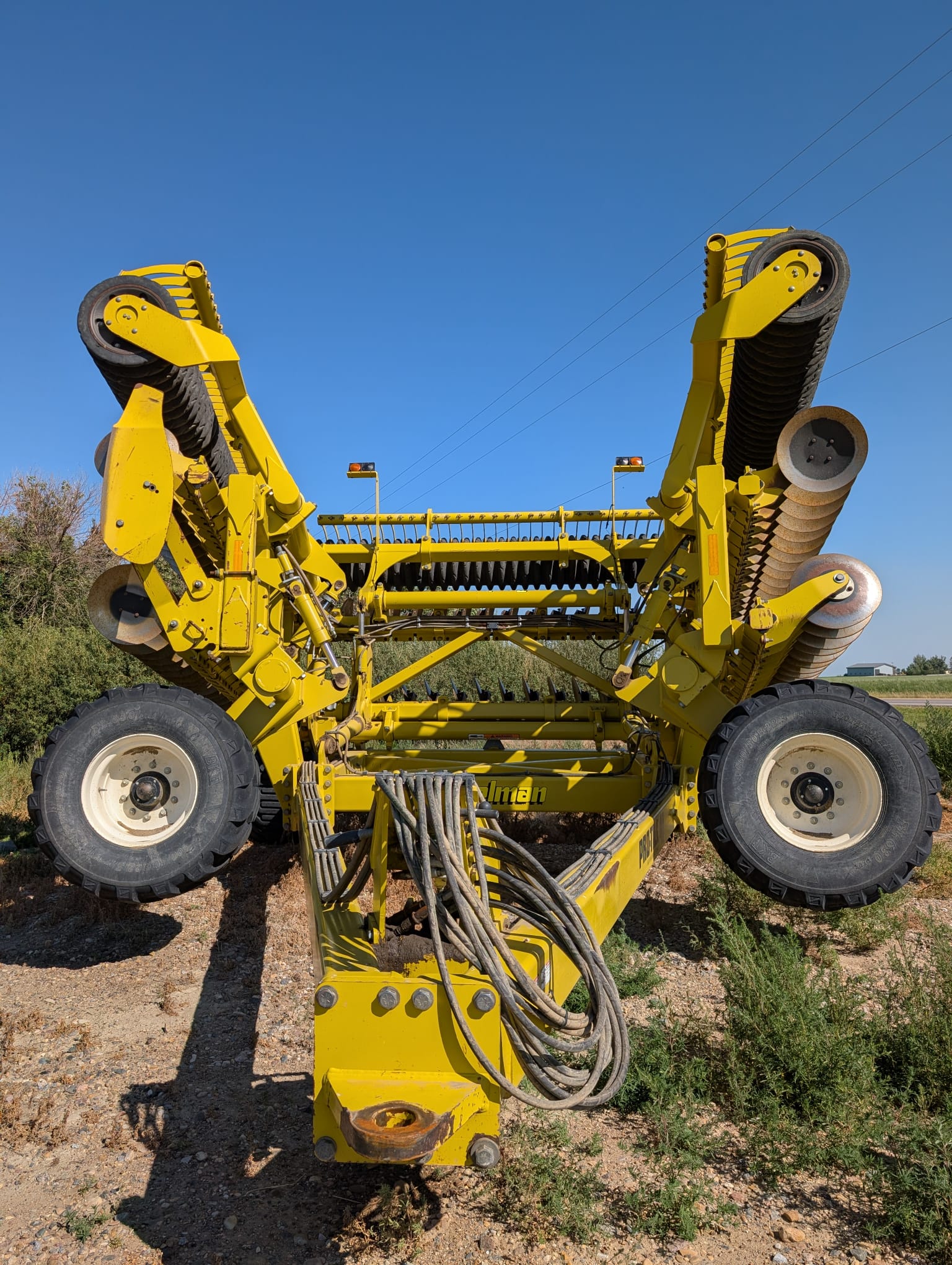

Pro-Till is user-friendly, allowing the operator to engage the transport position from the safety of the tractor seat. The wing-forward design is incredibly compact and stable for road transport. It incorporates an ultra-low profile-under 13’ (3.9m) - which is ideal for clearing bridges and power lines. The hitch weight is positive, creating a safe and highly maneuverable machine.

SPECIFICATIONS:

Model: PT40

Width Available: 40’ (12 m)

Transport Height (rubber roller) : 13’-2” (4 m)

Transport Height (cage roller): 12’-7” (3.8 m)

Transport Width: 20’ (6 m)

Weight: 34,560 lbs (15,680 kg)

Hitch Weight: 8,500 lbs (3,855 kg)

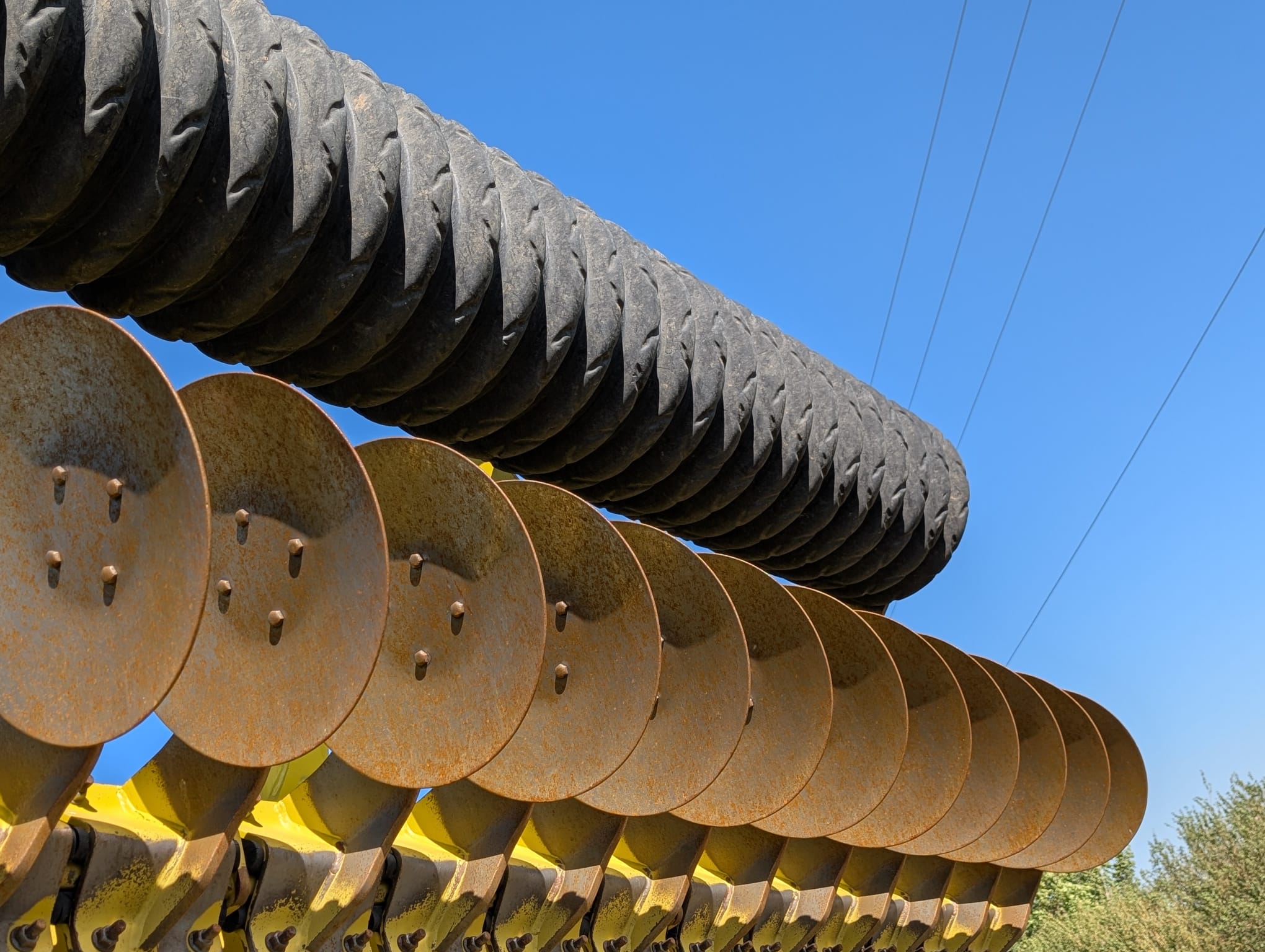

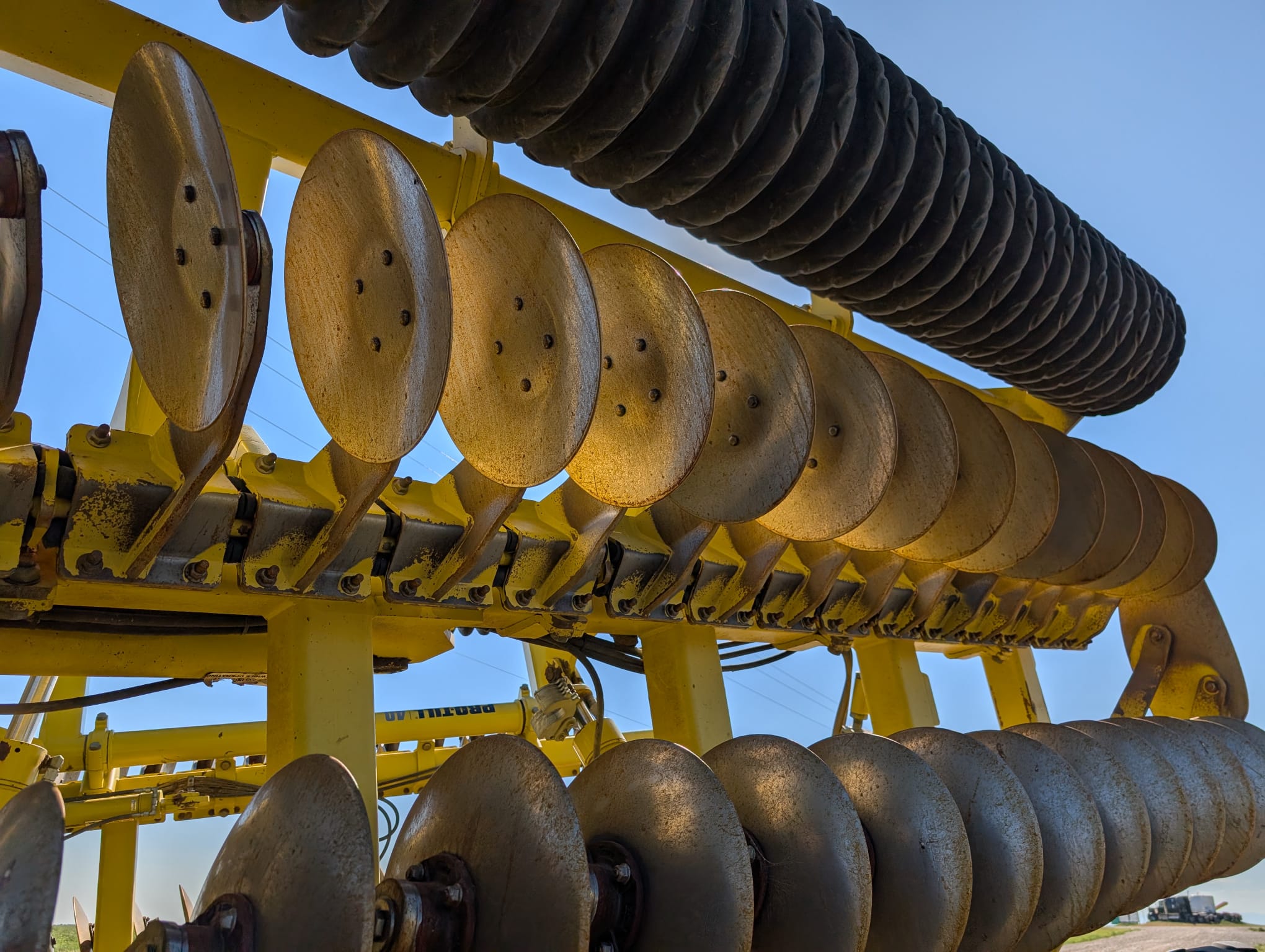

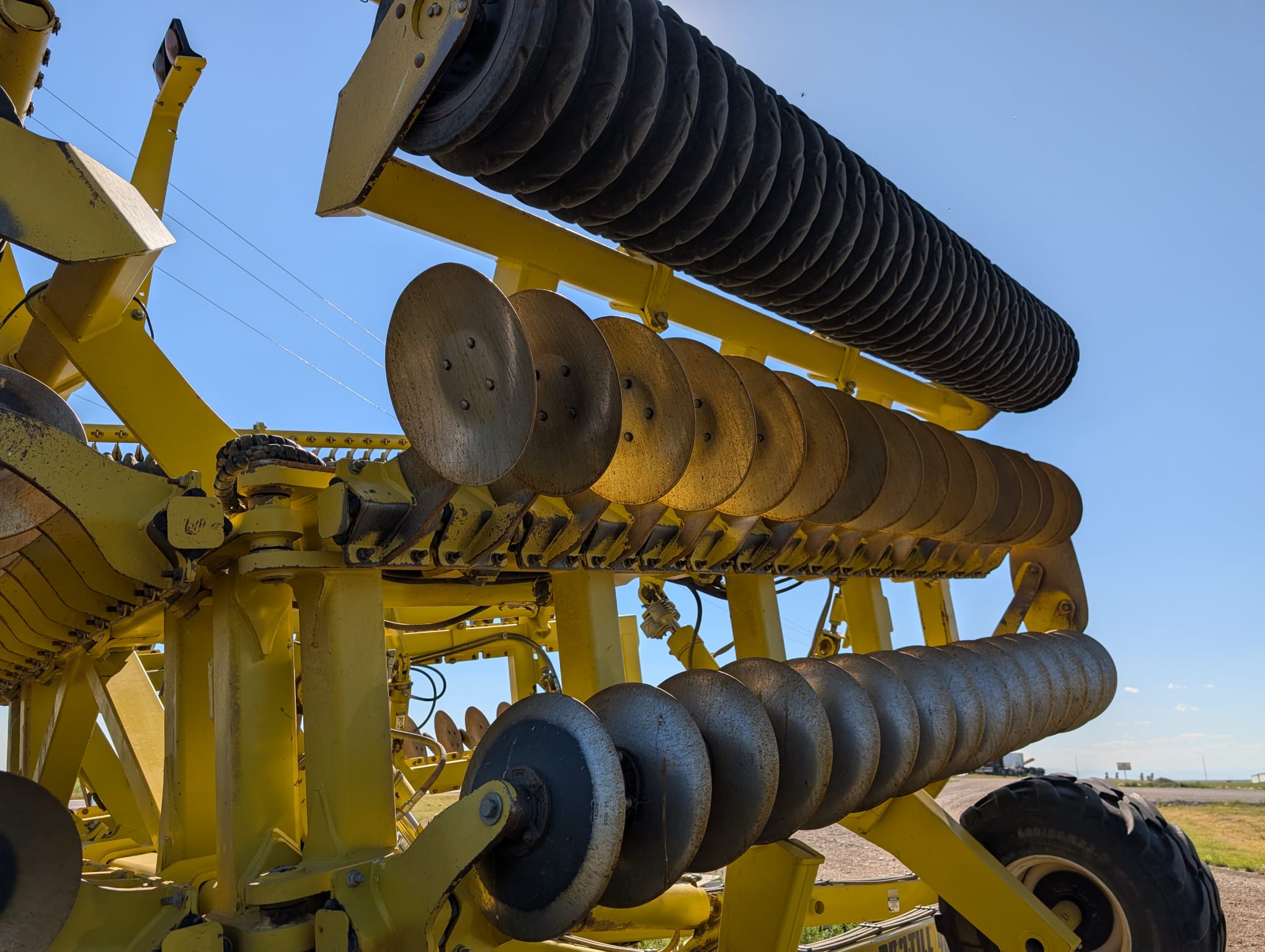

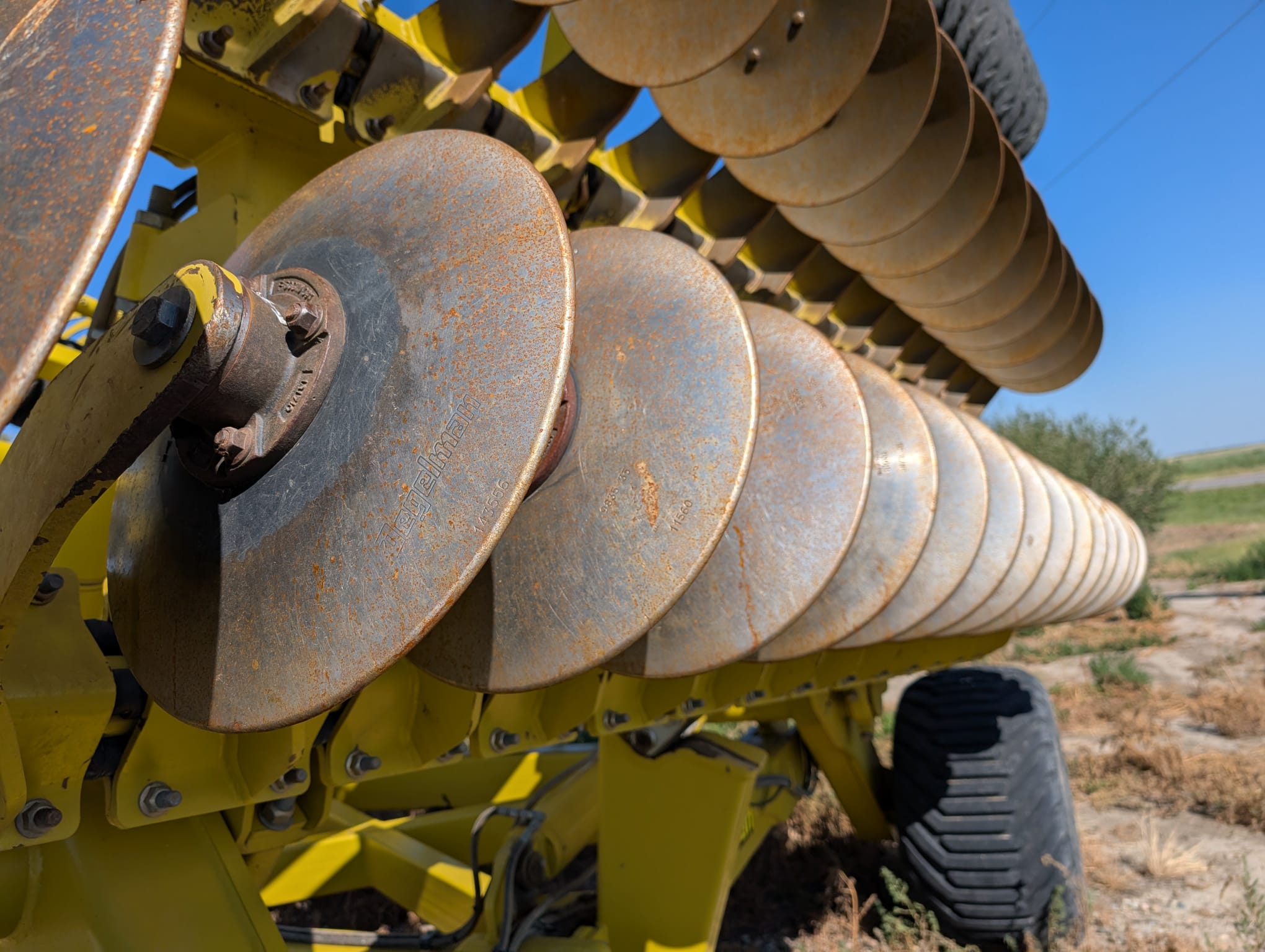

Number of Discs (center) :32

Number of Discs (per-wing): 31

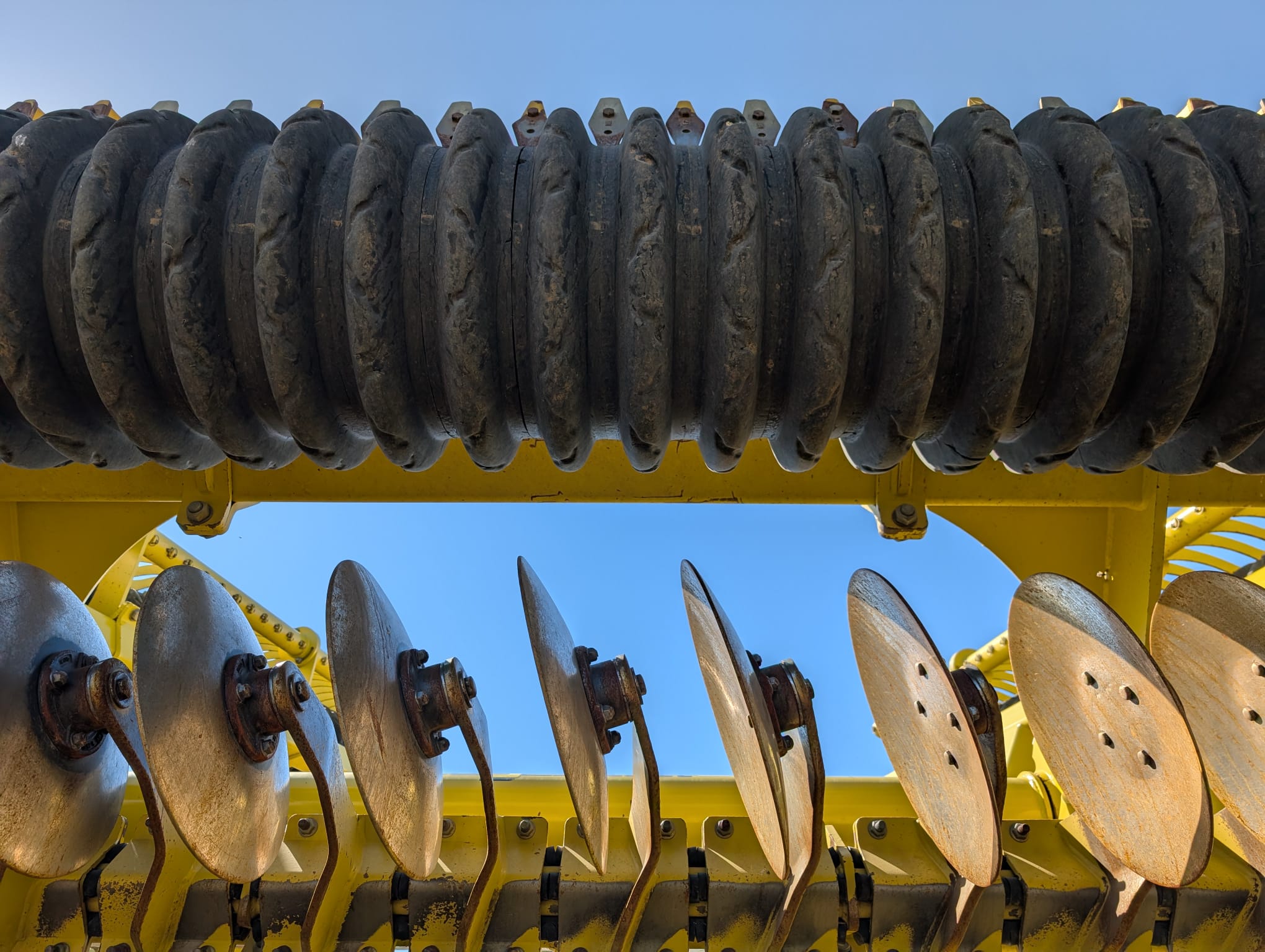

Disc Arm Mounting: Rubber Torsion - 4 Elements per Arm

Disc Spacing: 5” Overall Spacing (10” Spacing per Row)

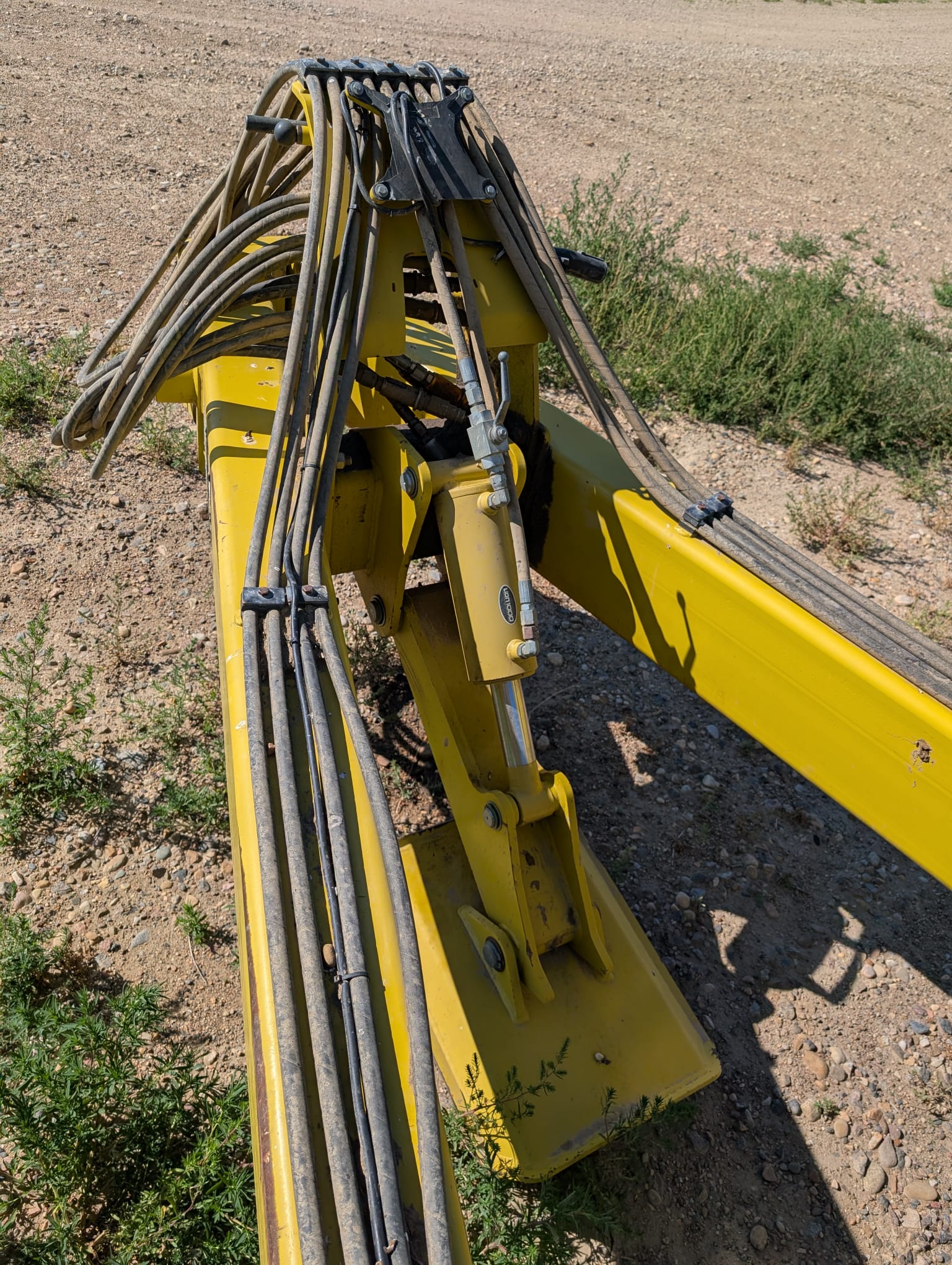

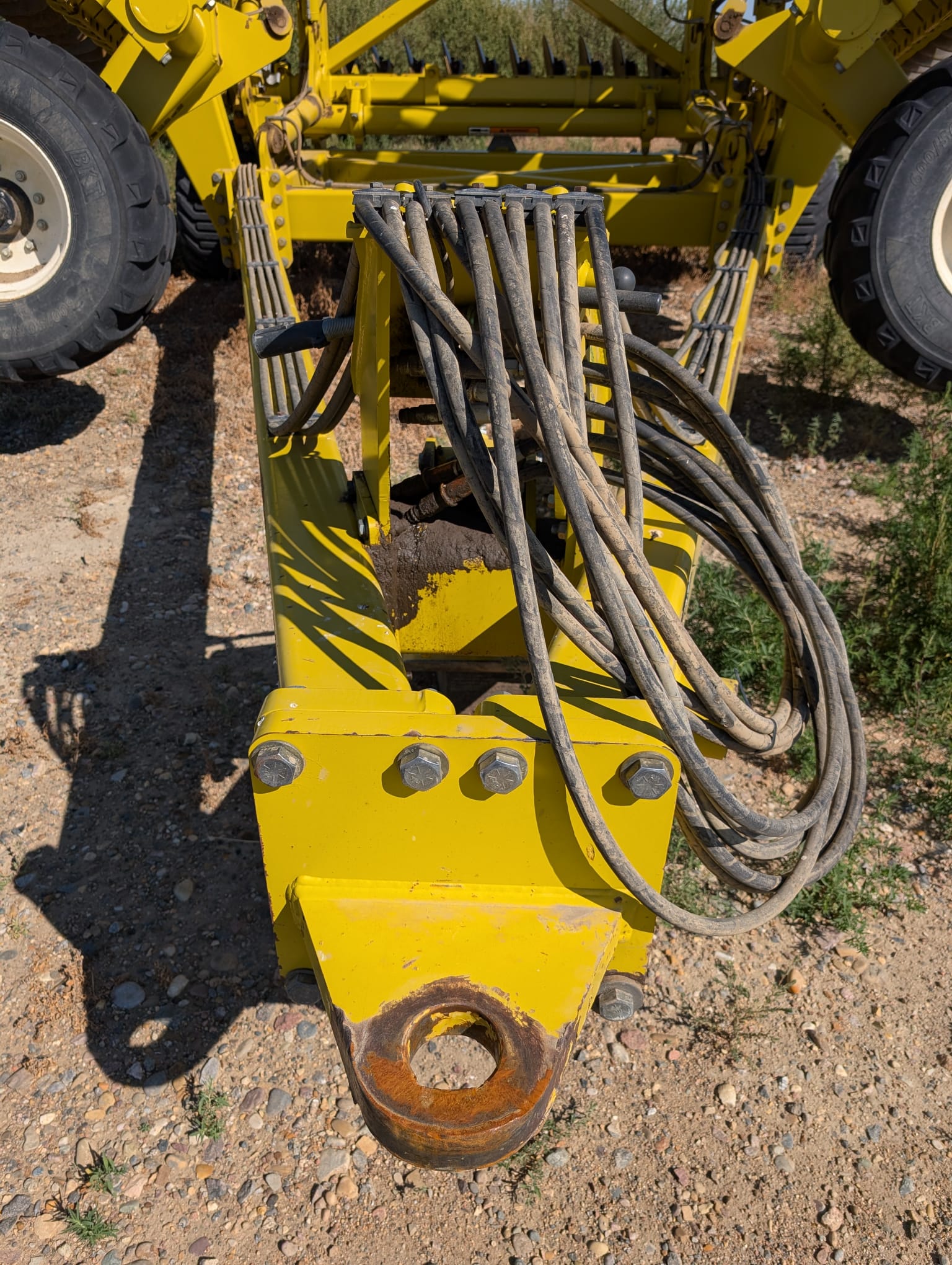

Hitch Frame: 6” x 10” x 3/8”

Center Frame: 6” x 10” x 3/8”

Wing Frame: 6” x 6” x 3/8”

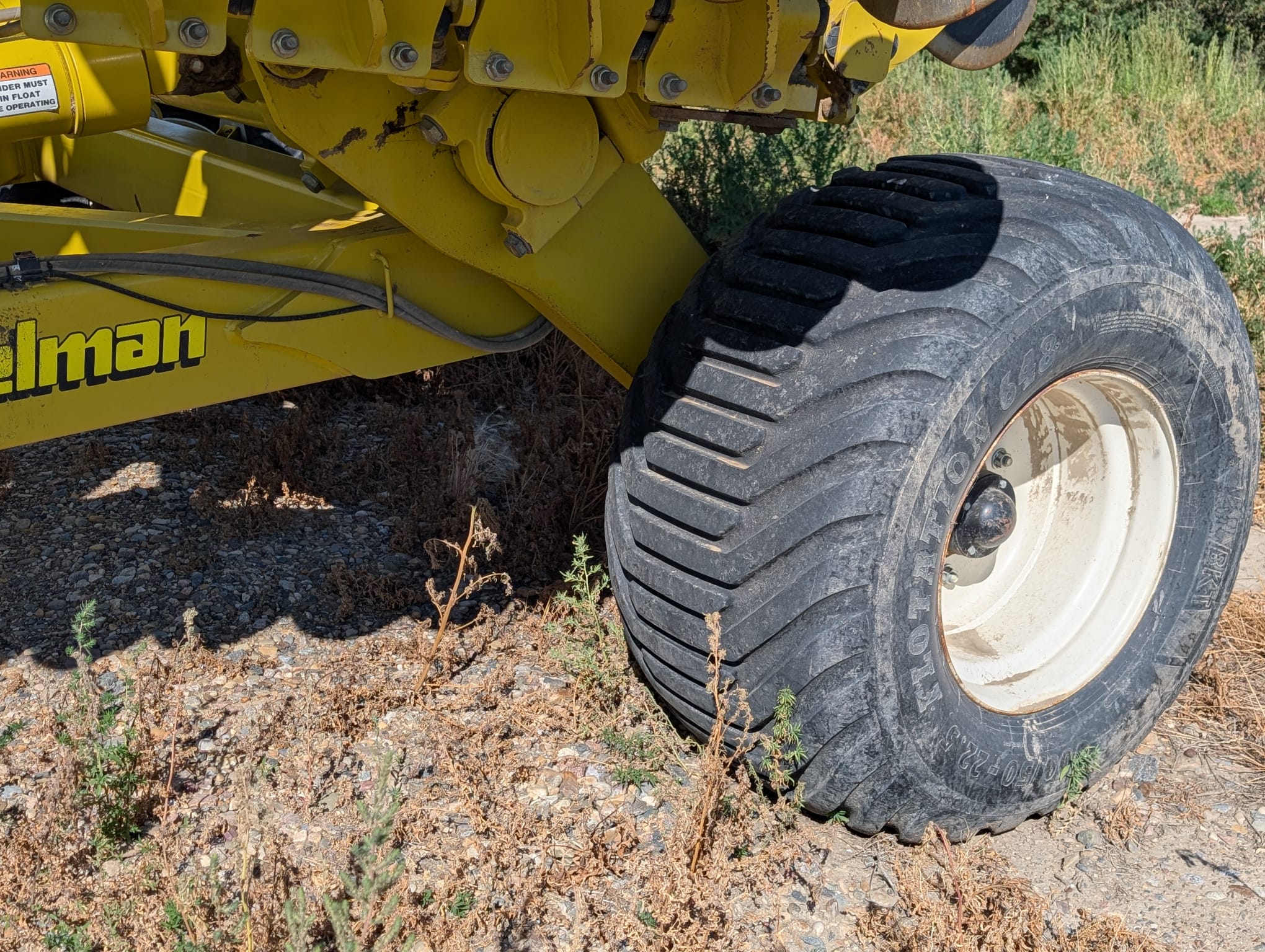

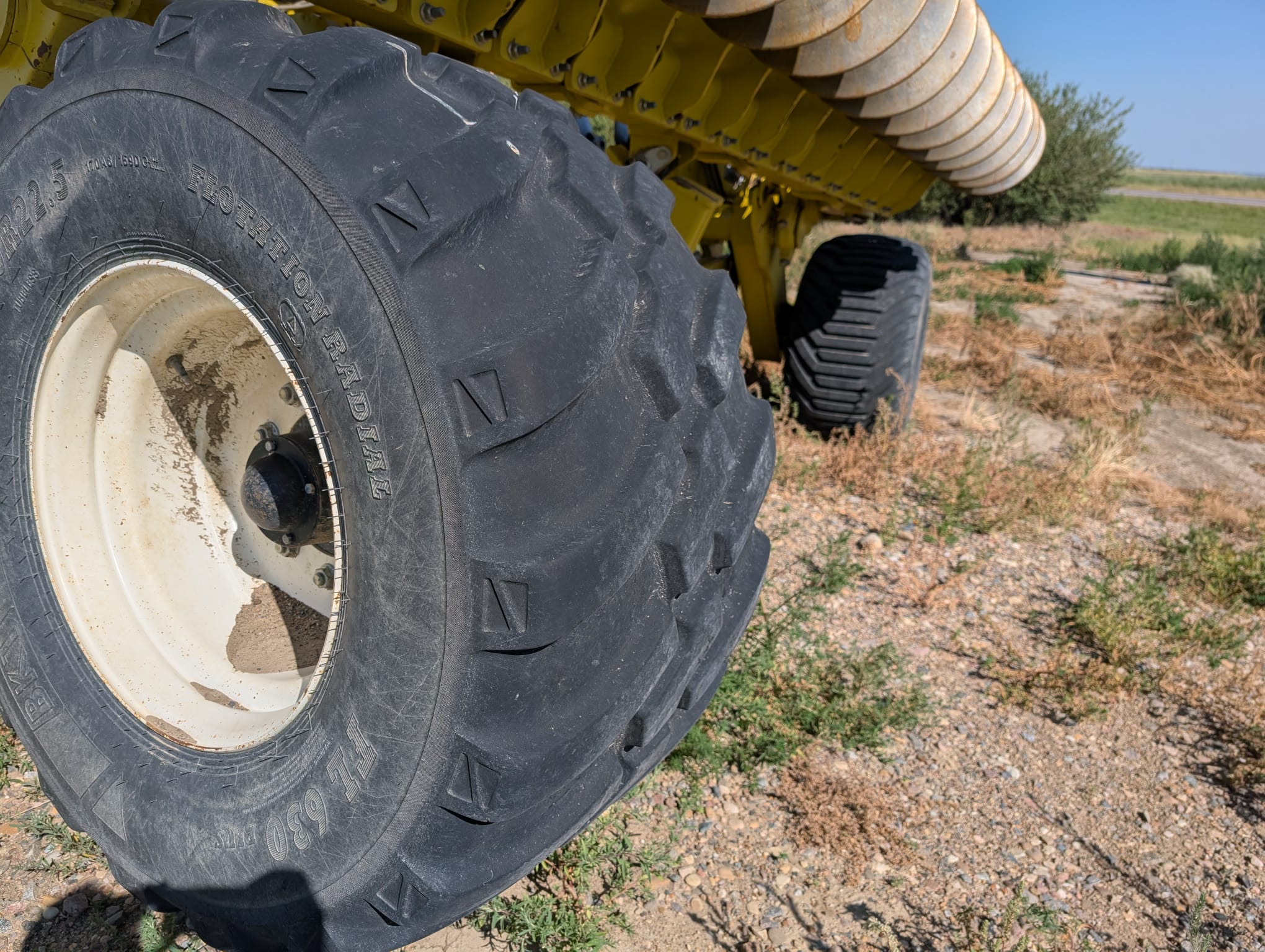

Tires (center): Alliance 600/50R22.5 FLOTRUCK

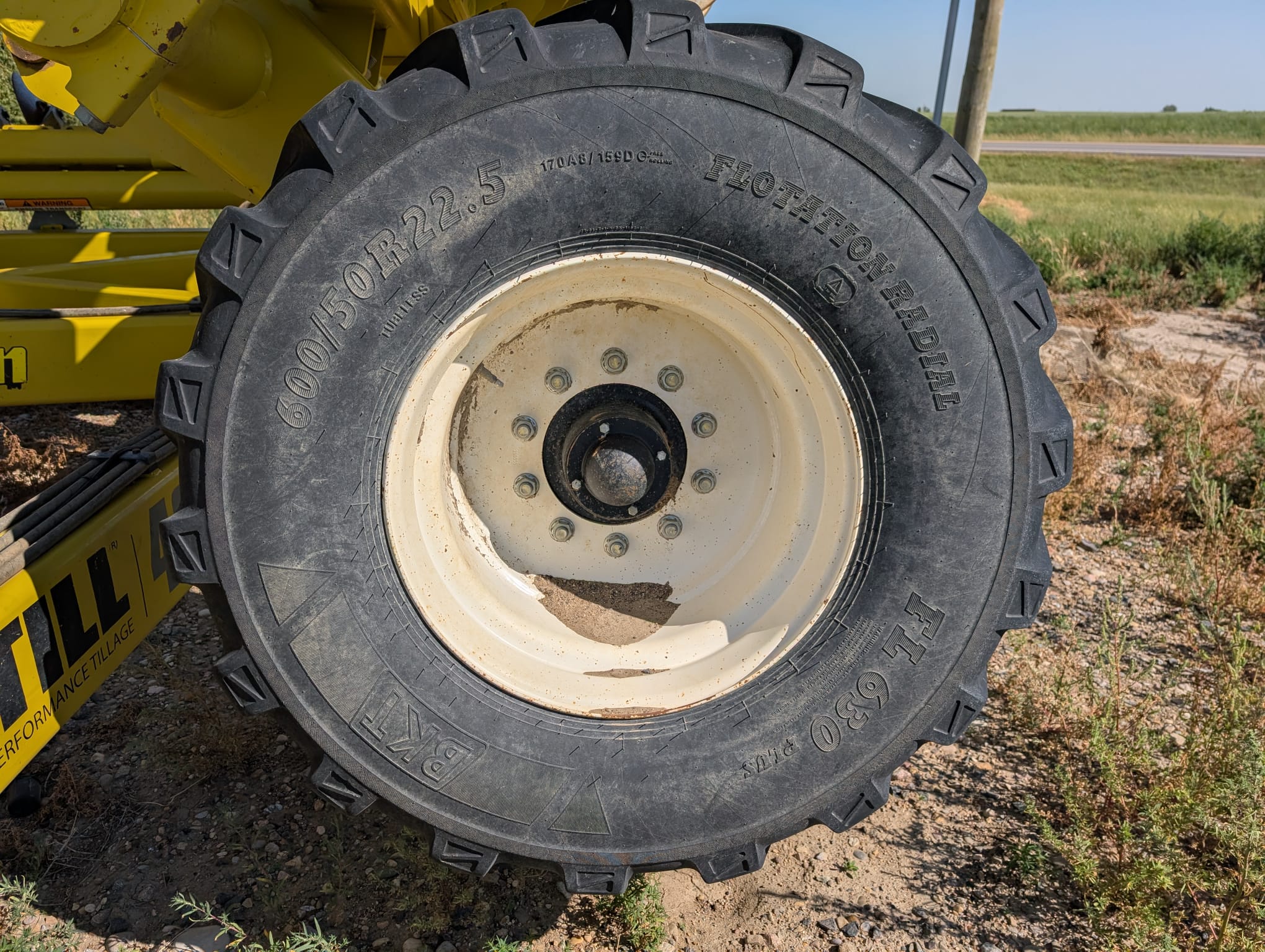

Tires (wing): BKT 600/50R22.5 FL630 Ultra

Hubs: H1010-9 (10 Bolt)

Roller Bearings: 2-7/16” Ball Bearing 6 - Lip Seal

Hydraulics - Wheel/Roller: Rephasing Circuit Masters 4-1/4” x 8” x 2” Rod & Slaves 3-3/4” x 8” x 2” Rod

Hydraulics - Transport Lift: 5-1/2” x 42” x 2-1/2” Rod

Hydraulics - Wing Forward: 4” x 28” x 2” Rod

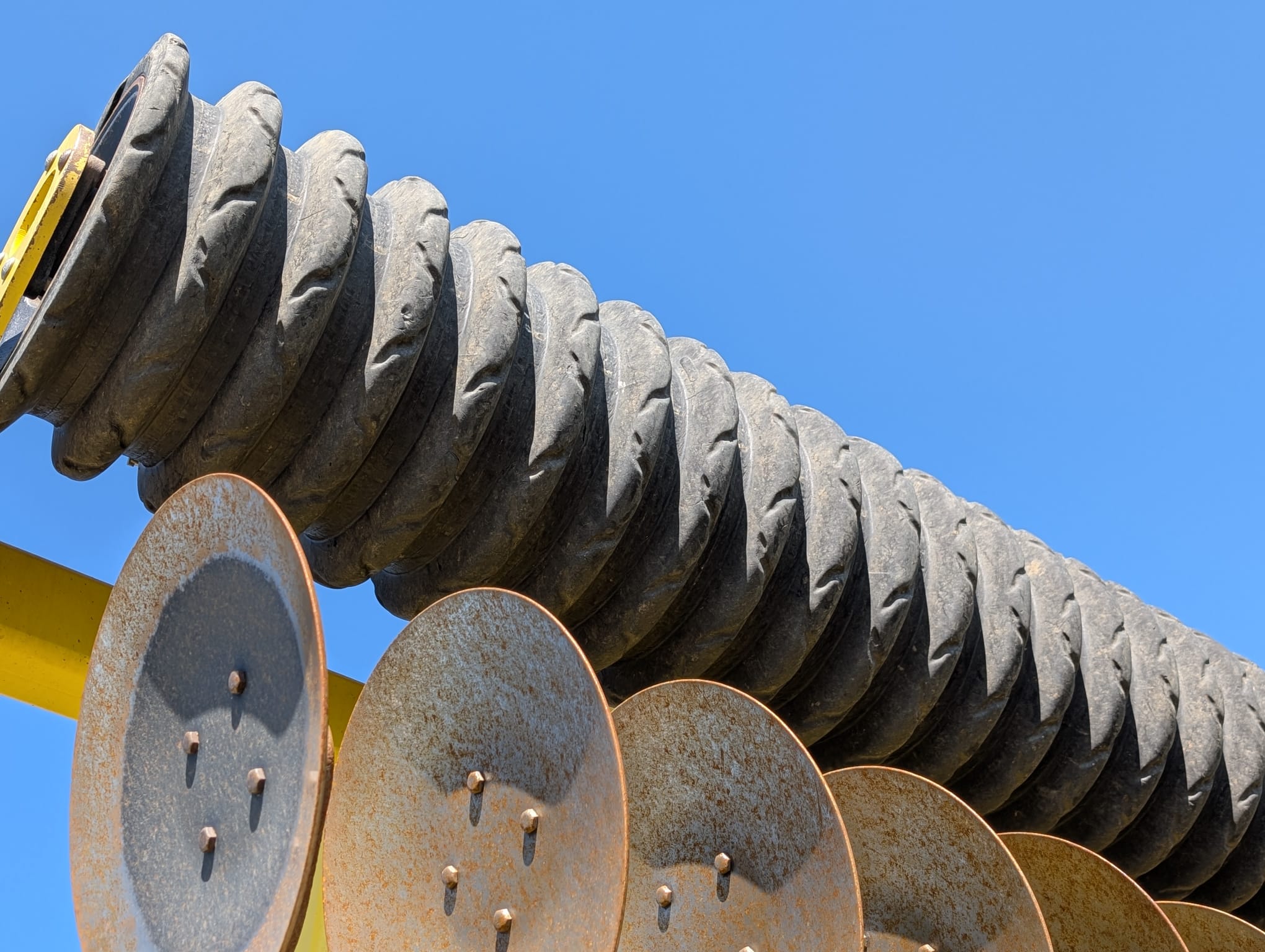

Roller Size (center): 13’-2” (4 m)

Roller Size (wings): 13’-2” (4 m)

Hydraulic Jack: Standard

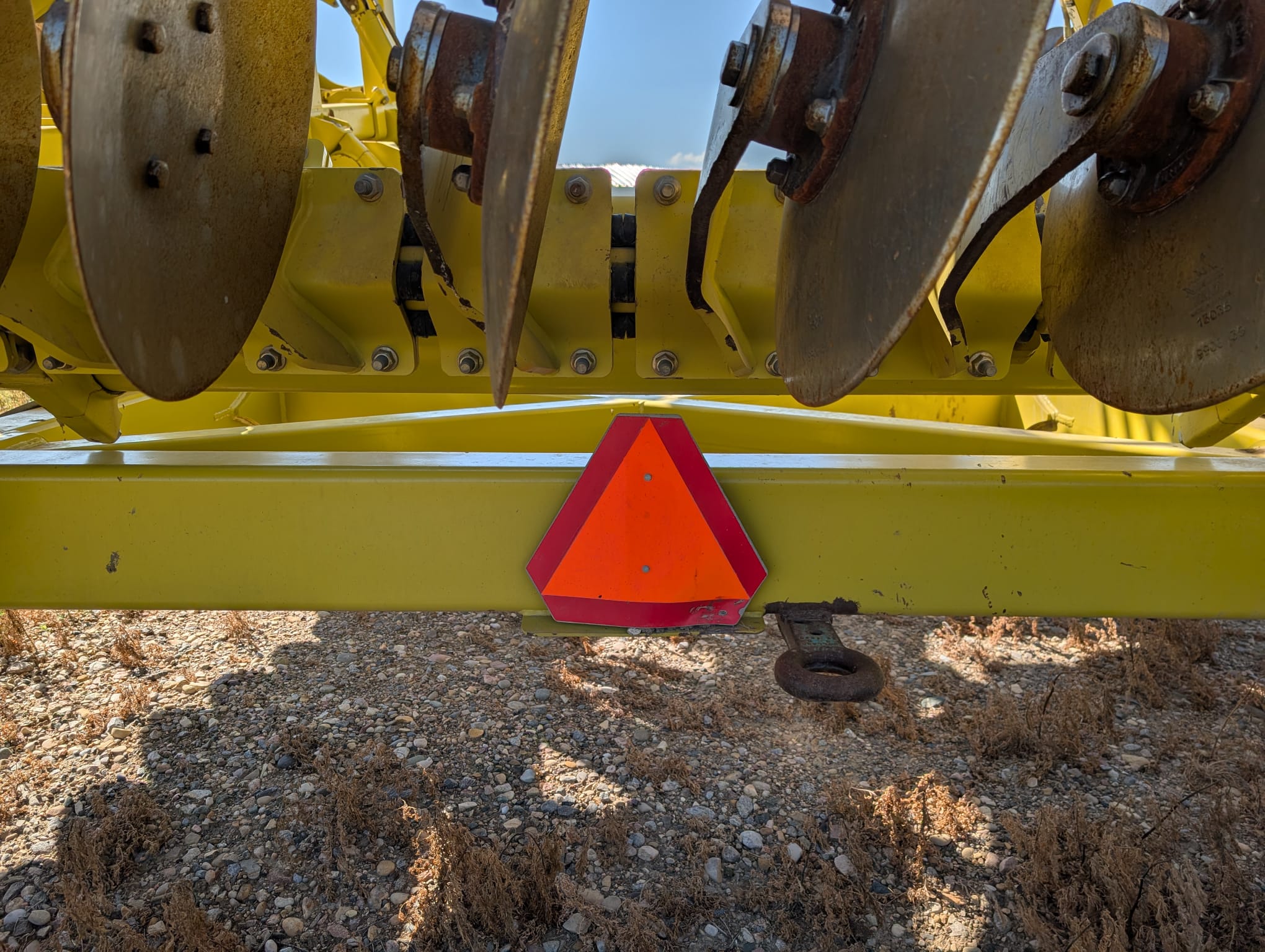

Safety Lights: Standard

Soil Deflector: Standard
