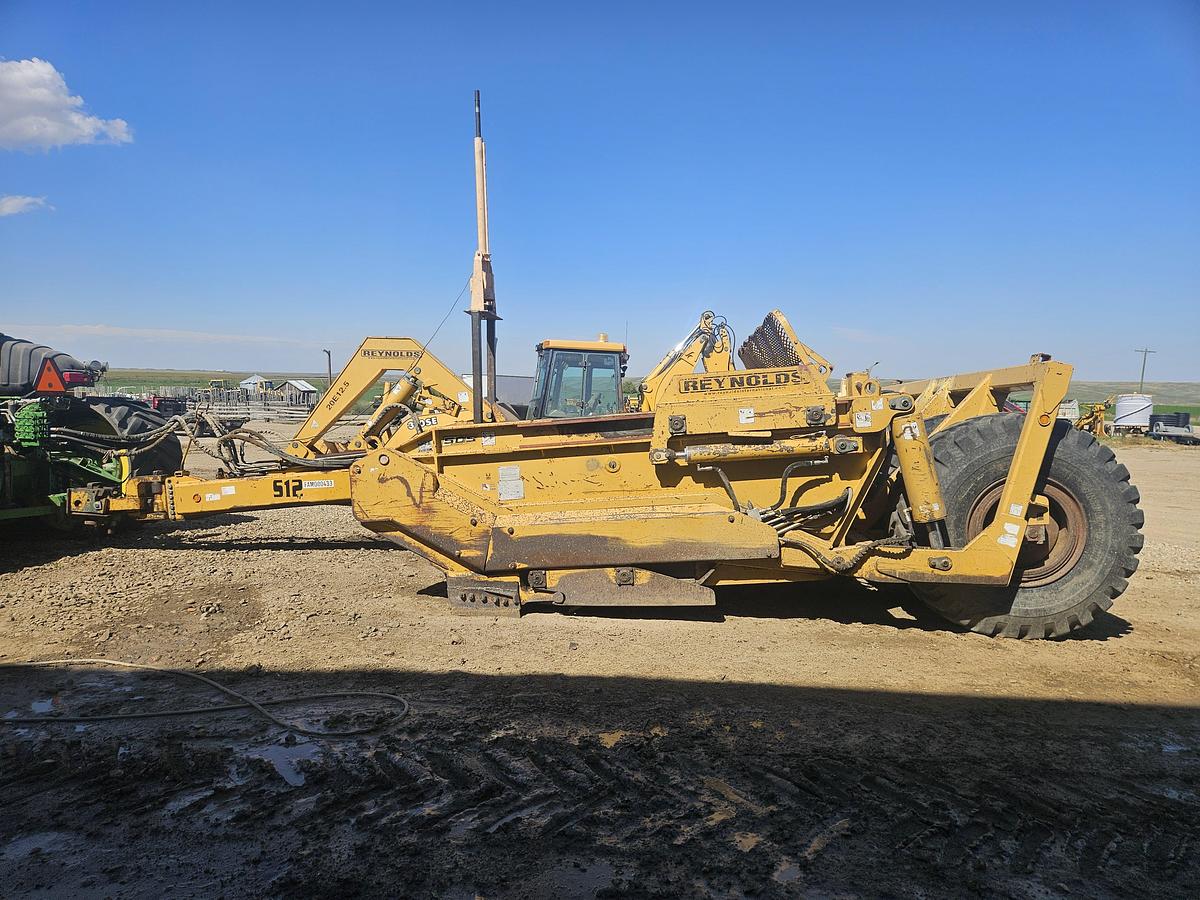

Reynolds 20E 12.5

20 cu. Yard (15,3m³) Ejector. SCRAPER model 20E12.5

12.5 Ft. (3,81m) cut for Construction

Known as "The best ejector Scraper" for roads, levies, ponds, airports, general construction and mining applications with Ag tractors from 375 to 500 HP.

Synchronized ejector:

Cylinders, priority apron opening system, replaceable flat ejector guide rails, and steel rollers. Patented SDS® system.

Hydraulic System:

Manifold with integral valves control all scraper functions.

Flare type fittings to reduce leaks.

Covers protect lines.

Easy service access.

Specifications

■ capacities

20.0 yd³ (15,3 m³) heaped

14.1 yd (10,8 m³) struck

■width

150" (3,81 m) cutting

168" (4,27 m) transp.

■tires

(4) 23.5 x 25

■shipping weight est.

30,240 lb (13,717 Kg)

Features

Multi-function hydraulic block.

Ejector/floor roller bearings.

Tandem hitch and hydraulics.

Cylinder safety stops.

Adjustable yoke hitch.

Reversible heat treated alloy blades.

Wear resistant cast bits.

Height adjustable axle mounts.

Heavy duty roller bearings hubs.

Laser bracket.

Options

Tractor drawbars.

Center Straight Blade

Tractor requirements

■ Hydraulics

two double acting circuits

optimum 35 GPM (140 I/min)

at 2500 PSI (175 bar)

■ Engine HP range

375-500 HP
